Notice: Use of undefined constant php - assumed 'php' w include() (linia 42 z /home/hlsmbb/public_html/drupal7/themes/pre_hls2_3col/node--produkt.tpl.php).MBB C 1500 S
photo_panel:
- One of the strongest tail lifts in its class
- 1,500 kg lifting capacity with large load distance of 1,000 mm
- Four-cylinder lifting mechanism with five different lifting arm lengths
- Designed with aluminium or steel platform
- Large selection of special equipment available
Specyfikacja:
| Specyfikacja | Diagram | ||
|---|---|---|---|
| Udźwig | 1500.0 kg | a (mm) | Q (kg) |
| Belka nośna | 180 x 180 mm | 1000 | 1500 |
| Układ hydrauliczny | 2 x siłownik podnoszący / 2 x siłownik zamykający | 1200 | 1250 |
| Platform overlap with floor | - 63 mm | 1500 | 1000 |
| Rostaw ramion podnoszenia /Długość ramion | 1300 mm | 1850 | 800 |
| Środek ciężkości – ładunek na środku podestu | 1000.0 mm | 2400 | 600 |
| Środek ciężkości – ładunek po jednej stronie | Central, 50 % pełnego obciążenia na stronę |
 |
|
| Kąt pochylenia podestu | +90° do -10° degrees | ||

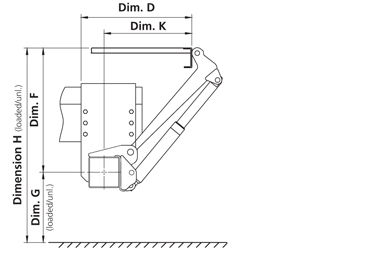

| Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Lift arms (in mm) | 700 | 800 | 900 | 1000 | 1100 |
 |
|
| H (max.) | Loading height unloaded | 1200 | 1428 | 1528 | 1651 | 1793 | |
| H (min.) | Loading height loaded | 883 | 916 | 1006 | 950 | 1023 | |
| F (max.) | Middle of main beam to upper edge of loading floor | 650 | 817 | 924 | 977 | 1056 | |
| K (min.) | at dimension F (max.) | 618 | 601 | 623 | 721 | 783 | |
| D (min.) | Installation space (min.) | 768 | 751 | 773 | 871 | 933 | |
| D (max.) | Installation space (max.) | 876 | 970 | 1057 | 1190 | 1282 | |
| F (min.) | 508 | 566 | 614 | 569 | 608 | ||
| K (max.) | at dimension F (min.) | 726 | 820 | 907 | 1040 | 1132 | |
| WEIGHTS | |||
|---|---|---|---|
| Platform type | Width (mm) | Height (mm) | Dead weight (kg) |
| alu | 2500.0 | 1800.0 | 517.0 |
| alu | 2500.0 | 2050.0 | 535.0 |
| alu | 2500.0 | 2100.0 | 539.0 |
| alu | 2500.0 | 2009.0 | 685.0 |
| alu | 2500.0 | 2109.0 | 735.0 |
| The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes | |||
opcje:
1.lifting unit with KTL-coating + power
2. steel platform
3.aluminium platform with R13
4.roll stops
plusy:
{"1": {
"x":75,
"y":227,
"mouseover":"Ramp angle of platform",
"onClickHtml":"</br></br>We achieve the lowest ramping angle due to our special connection of the head to the platform."
},
"2": {
"x":167,
"y":243,
"mouseover":"ELECTRONIC CONTROL",
"onClickHtml":"</br></br>The uniqueness of our control is the patented sensor system. Herewith we are able to read out and analyse all directions and speeds of motion."
},
"3": {
"x":202,
"y":223,
"mouseover":"LIFTING UNIT WITH KTL-COATING",
"onClickHtml":"</br></br>All our lifting units are KTL-coated and reach 1000 hours in the salt-spray-test according to EN ISO 12 944-2 CSM."
},
"4": {
"x":252,
"y":236,
"mouseover":"HYDRAULIC CYLINDERS",
"onClickHtml":"</br></br>One of our core competences is the cylinder manufacturing in our own plant. Here we produce about 65.000 cylinders per annum. A burst pipe protection is achieved by integrated current regulating valves."
},
"5": {
"x":280,
"y":200,
"mouseover":"CONTROL BOX WITH INTERIOR LIGHT",
"onClickHtml":"</br></br>The ergonomically shaped control box has an interior light as standard.</br>"
}
}
